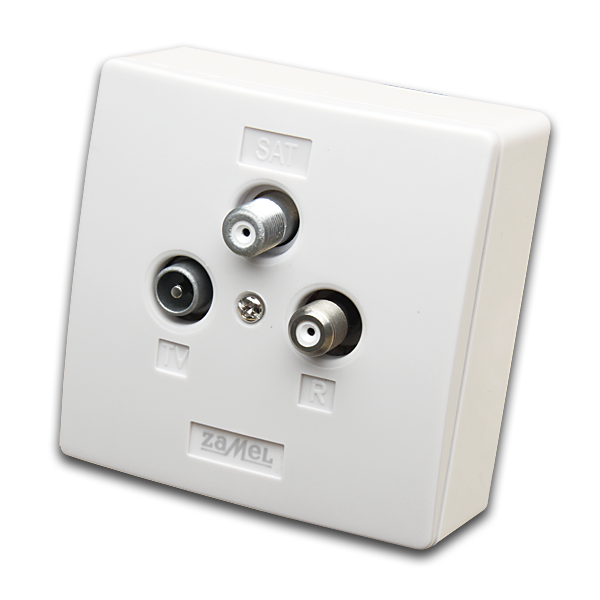

FINAL RTV-2xSAT SUBSCRIBER SOCKET SURFACE MOUNTED
FINAL RTV-2xSAT SUBSCRIBER SOCKET SURFACE MOUNTED
Description
- Designed for analogue and digital RTV-SAT installations,
- useful for N TV N-box decoders, where two Hotbird signals are needed or for double stream CI modules,
- two output ports for HF coaxial cables: 5 ÷ 2400 MHz for SAT input, 5 ÷ 2400 MHz for RTV/SAT input,
- high separation between particular ports,
- the possibility of usage of SAT port as reversible channel,
- galvanic separation of input from R outputsTV,
- reliability and repeated nature of parameters, thanks to the performance in the SMT technology,
- casing of high screening efficiency made of the ZnAl alloy.
| COMMERCIAL DATA (NAR-SAT 3.1/NT) |
| Weight | 140 g |
| Dimensions | 93x83x40 mm |
| Bulk package | 48 [pcs.] |
| TECHNICAL DATA (NAR-SAT 3.1/NT) |
| Type | NAR-SAT 3.1/NT |
| Input frequency range RTV/SAT | 5 ÷ 2400 MHz |
| Input frequency range SAT | 5 ÷ 2400 MHz |
| RTV output frequency range | 5 ÷ 862 MHz |
| SAT1 output frequency range | 950 ÷ 2400 MHz |
| SAT2 output frequency range | 5 ÷ 2400 MHz |
| Coupling attenuation IN-RTV | ≤ 1,5 dB |
| Coupling attenuation IN-SAT1 | ≤ 1,5 dB |
| Coupling attenuation IN-SAT2 | ≤ 1,5 dB |
| Cross-talk attenuation SAT1 - RTV | ≥ 25,3 dB |
| RTV output connector | IEC male |
| SAT1 output connector | F type |
| SAT2 output connector | F type |
| Wave impendance IN/OUT | 75 Ω / 75 Ω |
| Case | Surface mounted |
| Colour | White |
| Reference standards | PN-EN 50083 |
| informations |
|
Documentation: • technical data • inner diagram • dimensions • apperance • user manual • certificate (PL) Diagrams and drawings: • cable assembly • connection • mechanism appearance Characteristics: • attenuation IN-RTV • attenuation IN-SAT1 • attenuation IN-SAT2 Family product: • NAR-SAT 1.4/PT • NAR-SAT 1.4/NT • NAR-SAT 3.1/PT • NAR-SAT 3.1/NT • NAR-SAT 10/PT • NAR-SAT 10/NT |
