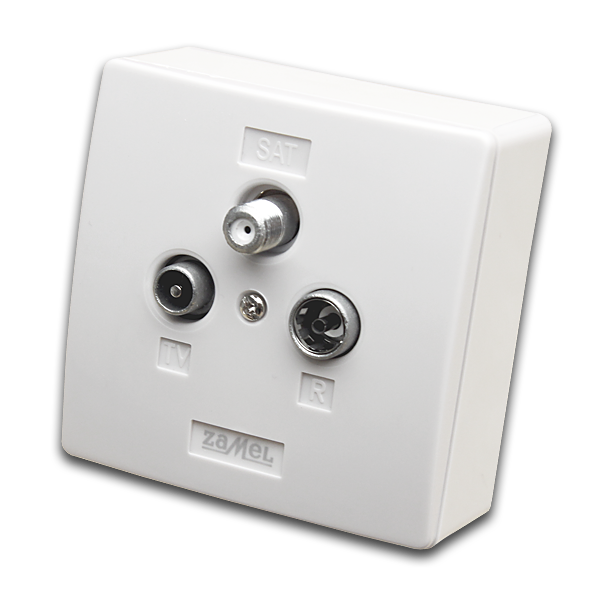

PASSAGE RTV-SAT SUBSCRIBER SOCKET SURFACE MOUNTED
PASSAGE RTV-SAT SUBSCRIBER SOCKET SURFACE MOUNTED
Description
- Designed for analogue and digital RTV-SAT installations,
- passage socket for aerial and passage, satellite systems of a star-shaped type or individual aerial RTV and SAT installations,
- ensures signal division from multiswitch or digital adder into R, TV and SAT signals,
- two ports: input and output ones, for coaxial conductor conducting signal to and from, in the frequency of 5÷2400 MHz,
- two output ports consistent with standard IEC 60169-2 to connect radio receiver “R” and TV receiver “TV”,
- one output port, type “F” to connect SAT tuner,
- usage of the frequency ranges of TV, R and SAT bands broadened to 2,4 GHz,
- full characteristic of transmission in particular bands,
- high separation between particular ports,
- transfer of DC voltage on SAT output,
- galvanic separation of input from TV and R outputs,
- reliability and repeated nature of parameters, thanks to the performance in the SMT technology,
- casing of high screening efficiency made of ZnAl alloy.
| COMMERCIAL DATA (NAR-SAT 10/NT) |
| Weight | 140 g |
| Dimensions | 93x83x40 mm |
| Bulk package | 48 [pcs.] |
| TECHNICAL DATA (NAR-SAT 10/NT) |
| Type | NAR-SAT 10/NT |
| Input frequency range | 5 ÷ 2400 MHz |
| TV output frequency range | 5 ÷ 70, 120 ÷ 862 MHz |
| R output frequency range | 88 ÷ 108 MHz |
| SAT output frequency range | 950 ÷ 2400 MHz |
| Coupling attenuation IN-TV | 8 ÷ 12,2 dB |
| Coupling attenuation IN-R | 12 ÷ 12,1 dB |
| Coupling attenuation IN-SAT | 5,3 ÷ 8,5 dB |
| Cross-talk attenuation TV-R | ≥ 11,9 dB |
| Cross-talk attenuation TV-SAT | ≥ 24,6 dB |
| R output connector | IEC female |
| TV output connector | IEC male |
| SAT output connector | F type |
| Wave impendance IN/OUT | 75 Ω / 75 Ω |
| Case | Surface mounted |
| Colour | White |
| Reference standards | PN-EN 50083 PN-EN 60728-11 |
| informations |
|

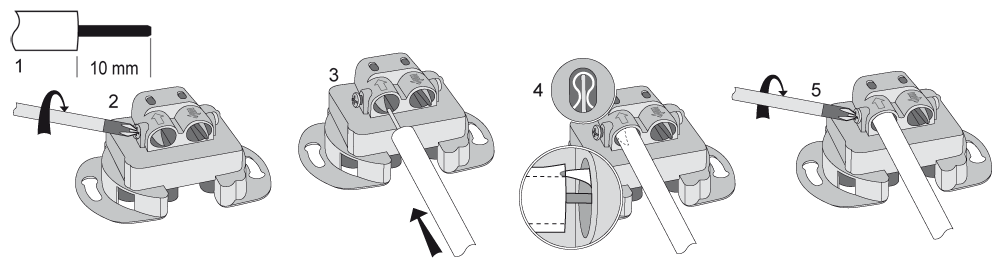

Documentation: • technical data • inner diagram • dimensions • apperance • user manual • certificate (PL) Diagrams and drawings: • cable assembly • connection • mechanism appearance Characteristics: • attenuation IN-R • attenuation IN-TV • attenuation IN-SAT • attenuation IN-OUT Family product: • NAR-SAT 1.4/PT • NAR-SAT 1.4/NT • NAR-SAT 3.1/PT • NAR-SAT 3.1/NT • NAR-SAT 10/PT • NAR-SAT 10/NT |
