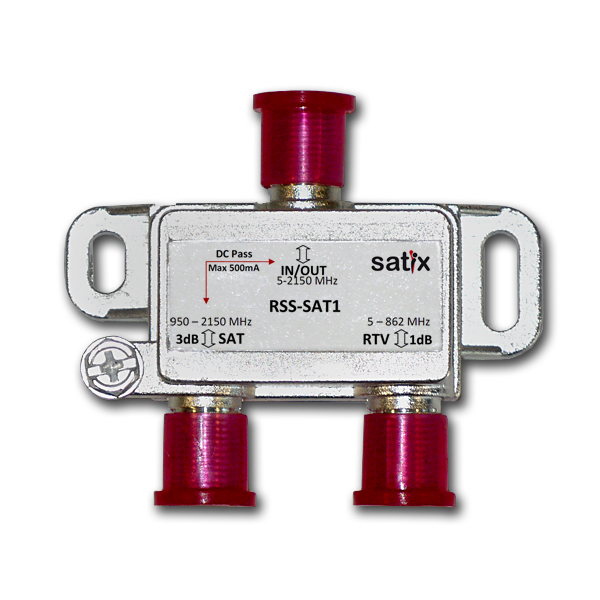

MIXER RTV-SAT SIGNALS
MIXER RTV-SAT SIGNALS
Description
- Designed for analogue and digital RTV-SAT installations,
- one input/output F connector for coaxial cable conducting signal in the frequency of 5÷2150 MHz,
- two F connectors to separate radio-television signal “RTV” from satellite signal “SAT”, or mix two signals from radio-television antennas and SAT antenna,
- transfer of DC voltage on SAT output,
- full characteristic of transmission in particular bands,
- high separation between particular ports,
- the possibility of usage of SAT port as reversible channel,
- reliability and repeated nature of parameters, thanks to the performance in the SMT technology,
- casing of high screening efficiency made of the ZnAl alloy.
| COMMERCIAL DATA (RSS-SAT1) |
| Weight | 60 g |
| Dimensions | 62x49x17 mm |
| Bulk package | 120 [pcs.] |
| TECHNICAL DATA (RSS-SAT1) |
| Type | RSS-SAT1 |
| IN/OUT frequency range | 5 ÷ 2150 MHz |
| RTV output frequency range | 5 ÷ 862 MHz |
| SAT output frequency range | 950 ÷ 2150 MHz |
| Coupling attenuation RTV | ≤ 1dB |
| Coupling attenuation SAT | ≤ 1dB |
| RTV connector | F type |
| SAT connector | F type |
| IN/OUT connector | F type |
| Wave impendance IN/OUT | 75 Ω / 75 Ω |
| Reference standards | PN-EN 50083 |
| informations |
|

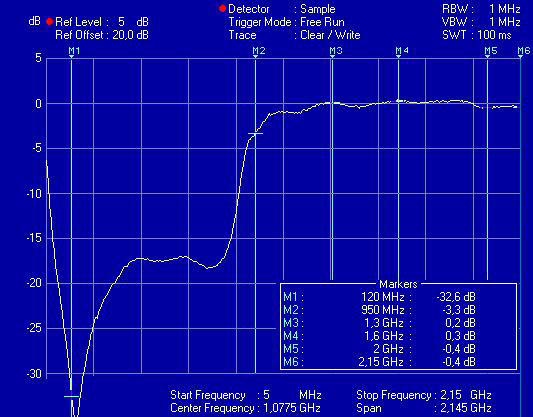

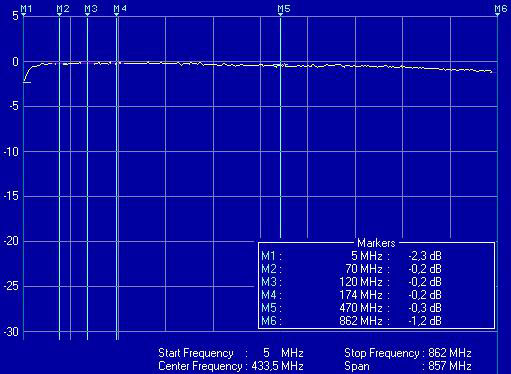

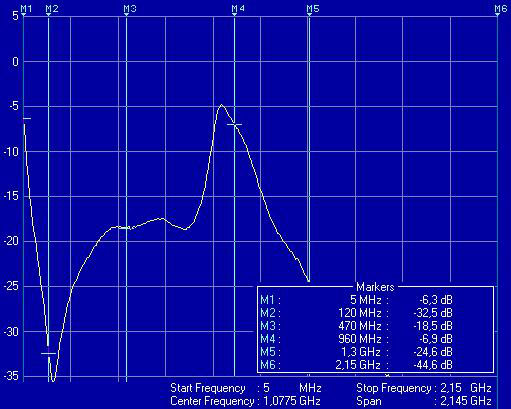

Documentation: • inner diagram Characteristics: • attenuation IN/OUT-RTV • attenuation IN/OUT-SAT • attenuation RTV-SAT Family product: • RSS-1DC • RSS-SAT1 • SS-SAT1DC |
