Name

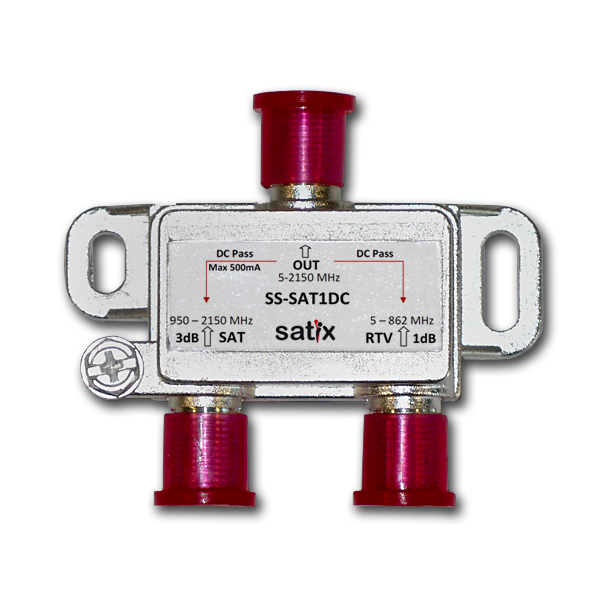

MIXER RTV-SAT SIGNALS

Description


COMMERCIAL DATA (SS-SAT1DC)
Weight 60 g
Dimensions 62x49x17 mm
Bulk package 120 [pcs.]

TECHNICAL DATA (SS-SAT1DC)
Type SS-SAT1DC
OUT frequency range 5 ÷ 2150 MHz
RTV output frequency range 5 ÷ 862 MHz
SAT output frequency range 950 ÷ 2150 MHz
Coupling attenuation RTV ≤ 1dB
Coupling attenuation SAT ≤ 1dB
RTV connector F type
SAT connector F type
IN/OUT connector F type
Wave impendance IN/OUT 75 Ω / 75 Ω
Reference standards PN-EN 50083





































SS-SAT1DC


informations
Documentation:
inner diagram

Characteristics:
attenuation RTV-WY

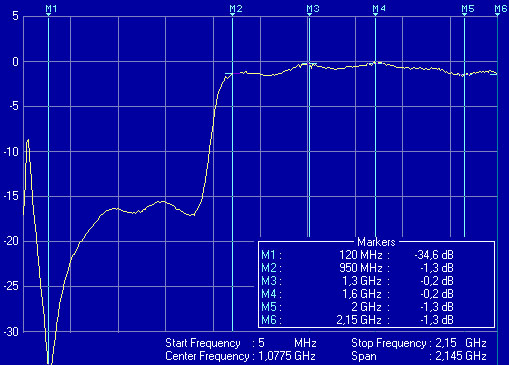

attenuation SAT-WY
attenuation RTV-SAT

Family product:
RSS-1DC
RSS-SAT1
SS-SAT1DC
