INDOOR SPLITTER RTV
INDOOR SPLITTER RTV

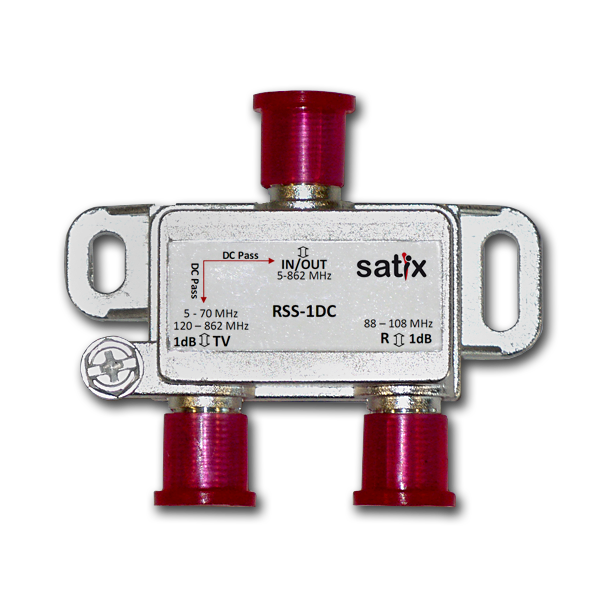

Description
- Designed for analogue and digital RTV installations,
- one input/output F connector for coaxial cable conducting signal in the frequency of 5÷1000 MHz,
- two F connectors to separate radio signal “R” from television signal “TV”, or mix two signals from radio antenna and television antenna,
- usage of the frequency ranges of bands TV, R,
- full characteristic of transmission in particular bands,
- high separation between particular ports,
- transfer of DC voltage according with block diagram,
- the possibility of power supply through aerial amplifiers socket,
- galvanic separation of input from R outputs,
- reliability and repeated nature of parameters, thanks to the performance in the SMT technology,
- casing of high screening efficiency.
| COMMERCIAL DATA (RSS-1DC) |
| Weight | 60 g |
| Dimensions | 62x49x17 mm |
| Bulk package | 120 [pcs.] |
| TECHNICAL DATA (RSS-1DC) |
| Type | RSS-1DC |
| IN/OUT frequency range | 5 ÷ 862 MHz |
| TV output frequency range | 5 ÷ 70, 120 ÷ 862 MHz |
| R output frequency range | 88 ÷ 108 MHz |
| Coupling attenuation TV | ≤ 1dB |
| Coupling attenuation R | ≤ 1dB |
| R connector | F type |
| TV connector | F type |
| IN/OUT connector | F type |
| Wave impendance IN/OUT | 75 Ω / 75 Ω |
| Reference standards | PN-EN 50083 |
| informations |
|

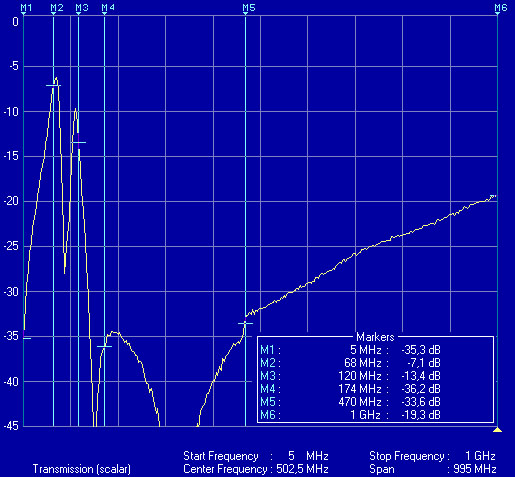

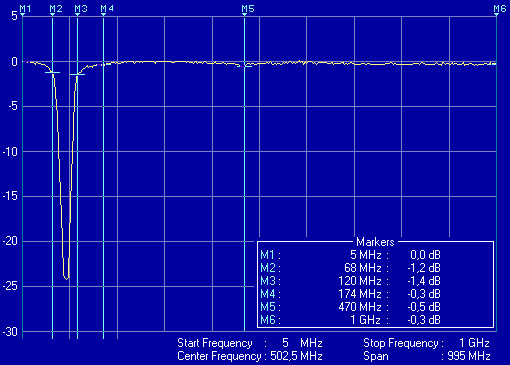

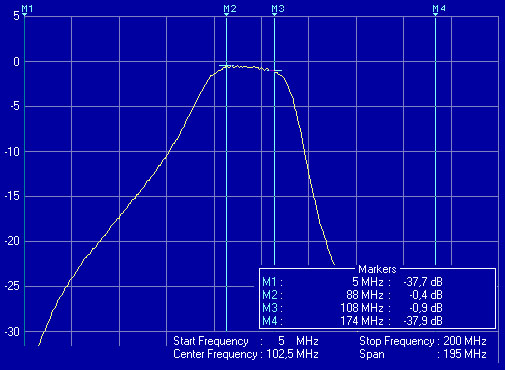

Documentation: • inner diagram Characteristics: • attenuation IN/OUT-R • attenuation IN/OUT-TV • attenuation R-TV Family product: • RSS-1DC • RSS-SAT1 |
